Description
Overview:

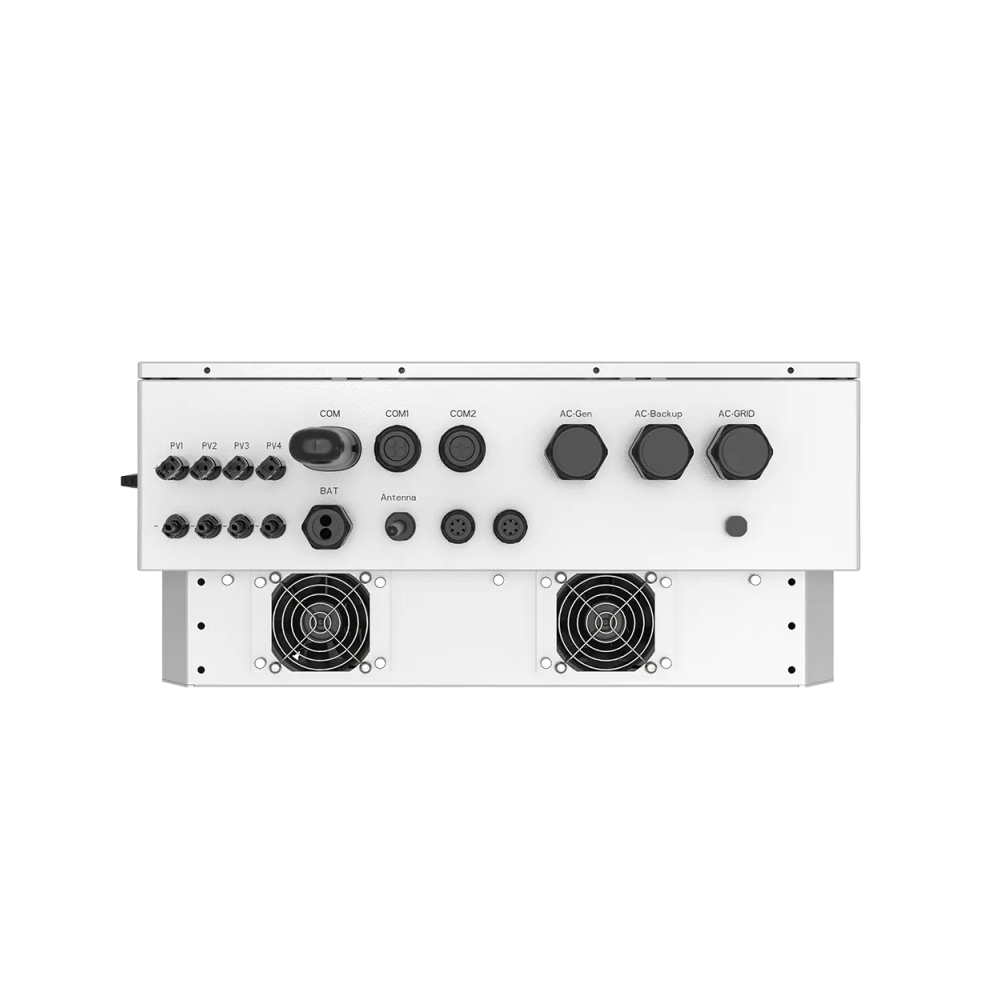

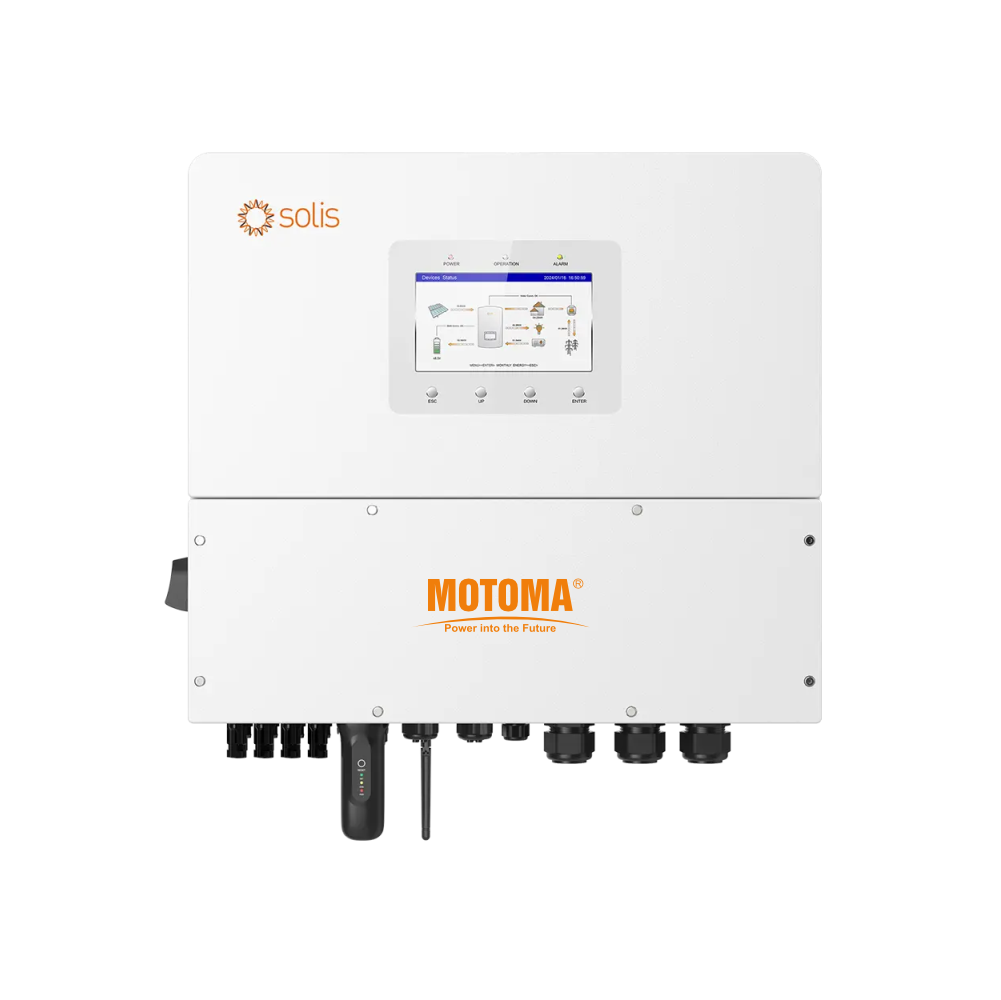

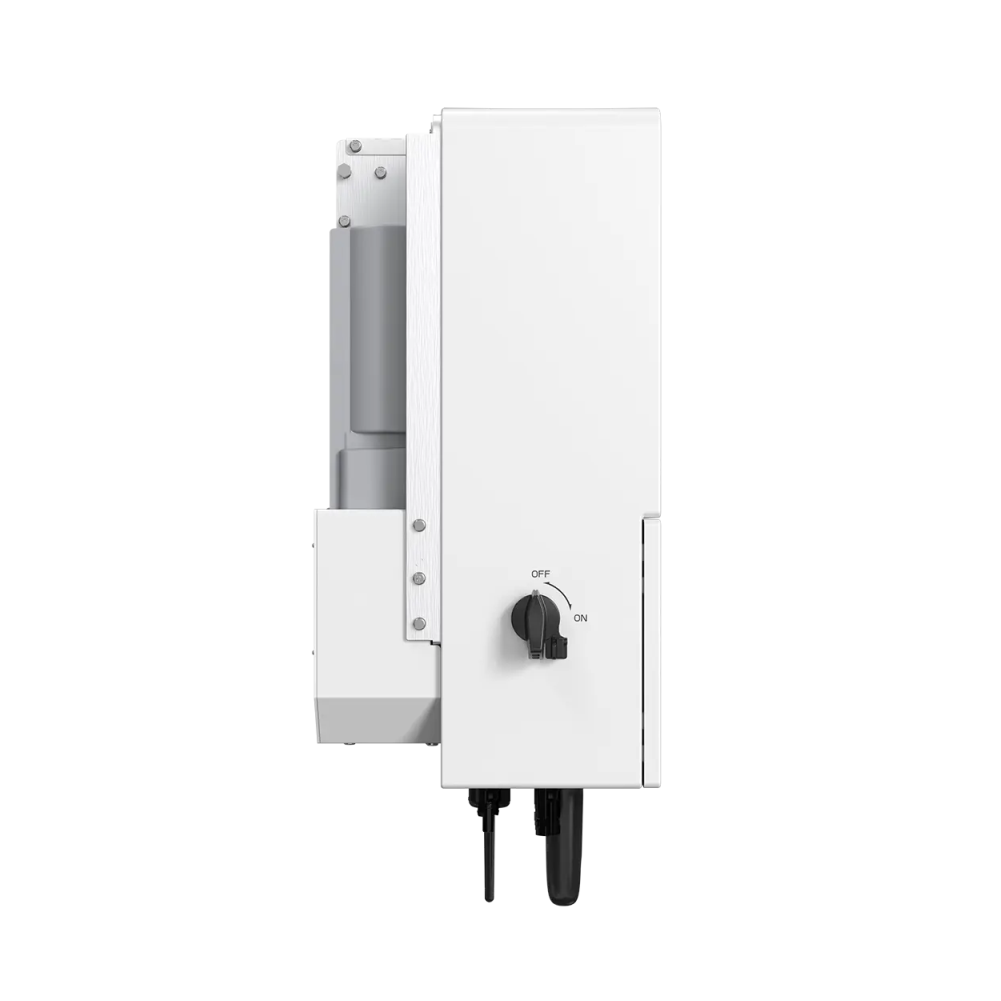

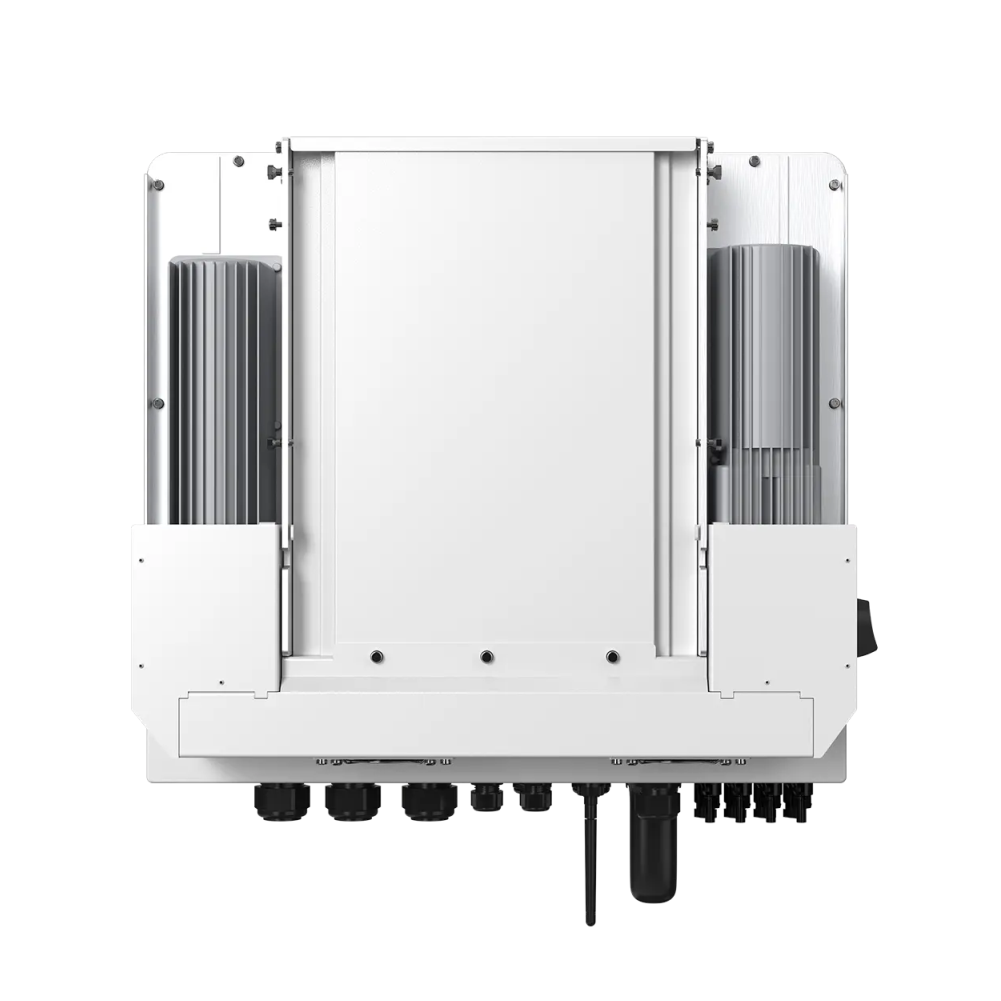

The MOTOMA Solis S6-EH3P (12KW–20KW) series is a robust, high-voltage hybrid inverter system engineered for three-phase residential and small commercial energy storage applications. With support for multiple smart energy features, advanced protections, and seamless grid/off-grid switching, it provides a reliable and efficient solution for maximizing solar energy usage and backup energy supply.
Main Features:
- High Voltage Battery System: Compatible with 120–800V lithium-ion batteries
- High Charge/Discharge Current: Up to 50A per channel, with max 30.4A AC output current (20KW model)
- Smart Operating Modes: Self-Use, Feed-in Priority, and Off-Grid
- Parallel Operation: Connect up to 6 inverters for larger single or 3-phase systems
- Generator and ATS Support: Auto start/stop and power routing options
- AC Coupling Compatibility: Retrofit-friendly integration with existing PV systems
- Smart Load Function: Control non-critical loads based on battery SOC
- 7-Inch Colorful LCD Display + Bluetooth: Full control without internet access
- Remote Monitoring: Supports Wi-Fi, 4G, LAN, SolisCloud APP
- IP66 Rated: Dust and water resistant for harsh outdoor environments
- Advanced Safety Features: AFCI, insulation monitoring, short-circuit protection, RCD, anti-islanding, and more
