Description
Overview:

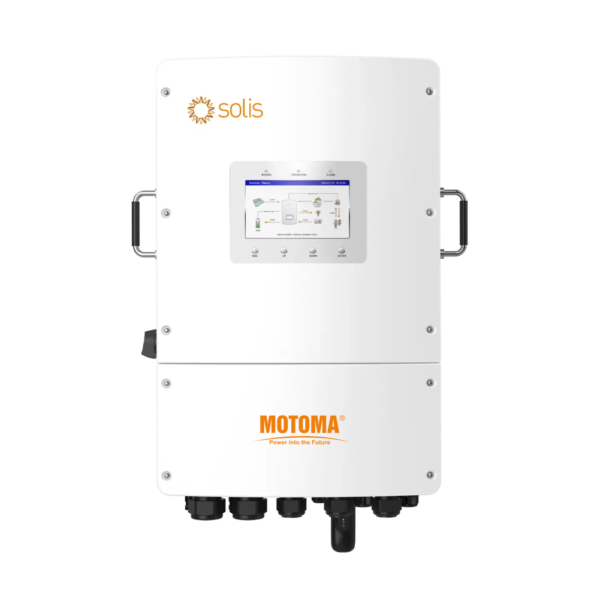

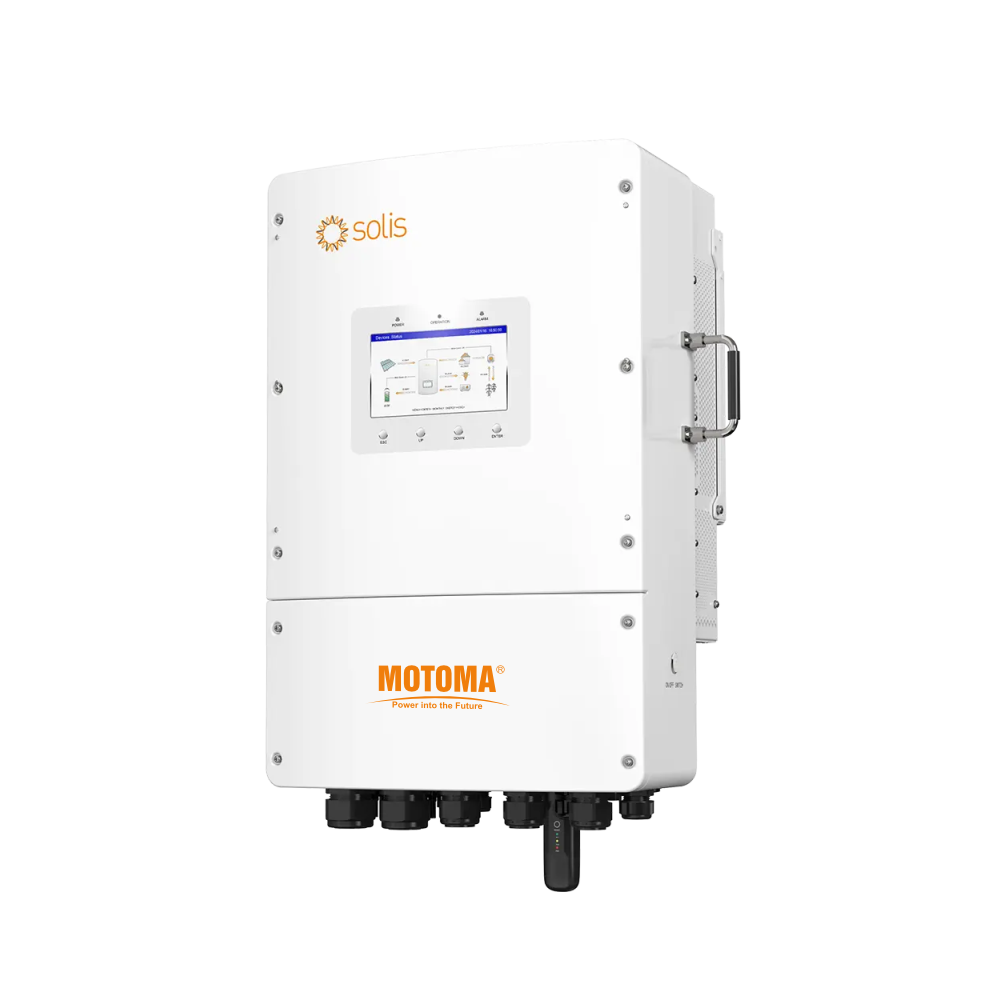

The MOTOMA Solis S6-EH3P (12KW–15KW) series is a new-generation three-phase low-voltage hybrid inverter designed for residential and small commercial energy storage systems. It supports both lithium and lead-acid batteries with flexible configurations and a powerful charge/discharge capacity up to 290A. With smart load management, seamless backup transition, and advanced connectivity, it ensures reliable performance, energy independence, and long-term savings.
Main Features:
- Supports 48V lithium-ion and lead-acid batteries.
- Max charge/discharge current: 250A (12KW), 290A (15KW)
- Dual MPPT inputs with up to 4 PV strings (for 15KW model)
- AC Coupling supported for upgrading existing PV systems
- Supports generator auto start/stop and status monitoring
- Smart Load Port: Supply/detach non-critical loads based on SOC
- Up to 6 inverters can be connected in parallel (single or three-phase system)
- 3 working modes: Self-use / Feed-in Priority / Off-grid
- 7″ Colorful LCD + Bluetooth for local control without internet
- Remote monitoring via Wi-Fi / 4G / LAN / SolisCloud App
- Seamless <10ms backup switching
- IP66 rated for indoor/outdoor installation
- Advanced protections: AFCI, surge, short circuit, reverse polarity
