50KW/100KWh Smart ESS (M50-100)

M50-100 Smart ESS

50KW/100KWh

Rated Power

50KW Output & 100KWh Battery

Made By Fresh

Grade A Cells

PV Array Power

50,000 W

>6000 Cycles

@DOD 80%

MPPT Range

4 MPPT 200 - 850 VDC

Intelligent BMS & EMS

Improves Performance

Support Parallel

Up to 16 Units (800 KW)

Communication:

CAN/RS232/RS485

IP54 Waterproof

& Dustproof

Feed in-To

The Grid

Categories: , Product ID: 30252

Description

Overview:

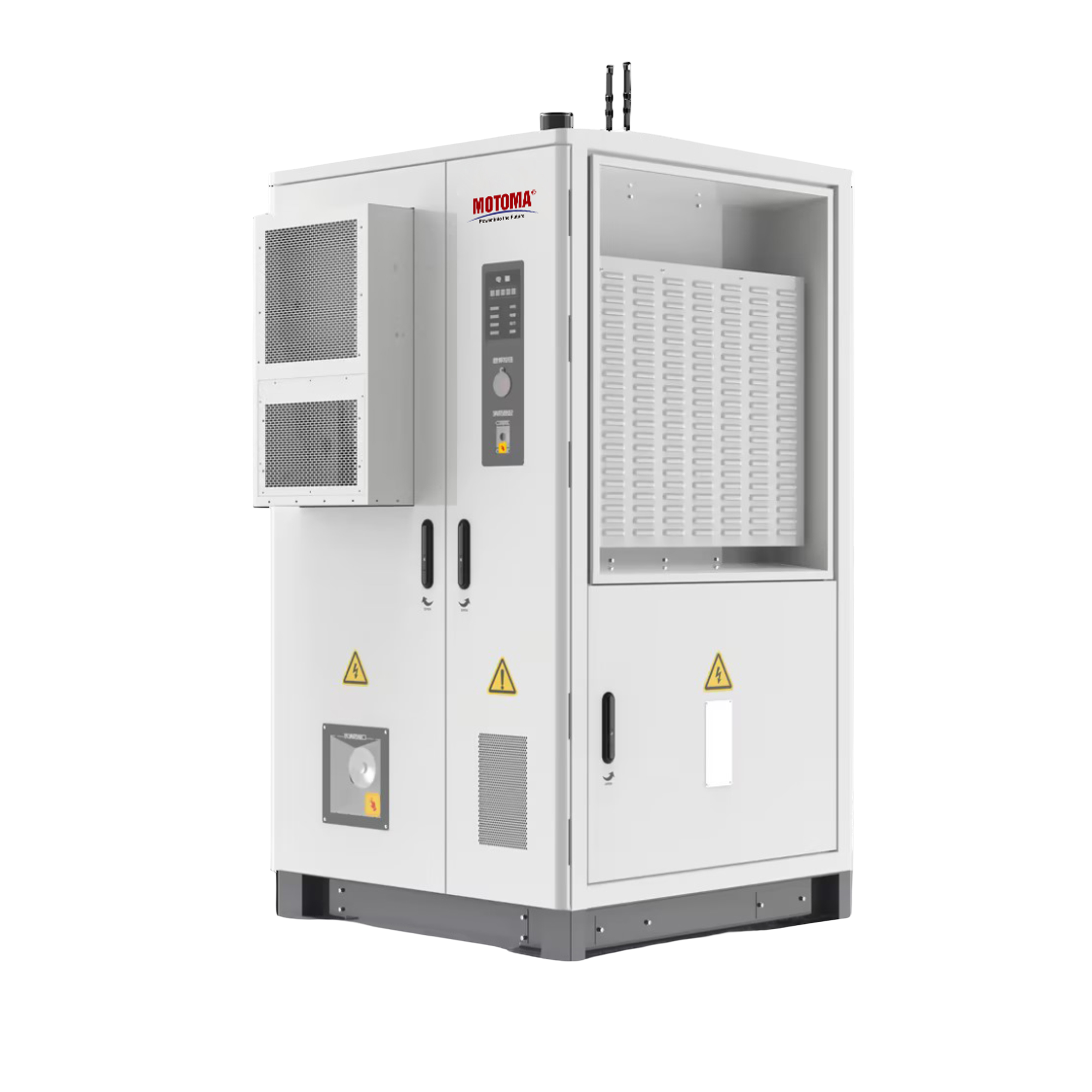

“The Smart ESS Unit – M50-100 is an all-in-one PV ESS Converter”, expertly designed for optimal performance and longevity. It features a state-of-the-art Long Life Lithium battery equipped with top-grade, fresh Grade A+ LiFePO4 cells. This unit integrates a sophisticated Battery Management System (BMS), a versatile Hybrid inverter, and an advanced Energy Management System (EMS). It also incorporates a temperature control system, a comprehensive fire protection system, and an efficient load distribution system. With an AC output of 400VAac, this compact, all-in-one solution is perfect for a variety of applications. It excels in power expansion and providing backup power supply . This makes it an ideal choice for On-gride and off-grid locations like mines, islands, farms, and power-deficient villages, ensuring a reliable and sustainable energy supply in challenging environments.”



Main Features:
Safe:

  • Verified by a number of destructive tests such as short circuit, burning, fire resistance, etc., making the product safe and reliable;
  • Electrical multi-dimensional fusion perception, multi-level fuse protection;
  • Internal integration of PV/ESS/PCS equipment, more unified bus control, improving system stability;
  • Early thermal runaway prewarning design, integrating detection, fire suppression, combustible gas detection, smoke prevention and explosion relief functions, which interacts with BMS and EMS to realize PACK-level targeted fire extinguishing;
  • Smart temperature control system, system temperature difference ≤5°C, battery cycle life increased by 12%.



Simple:

  • All-in-one design and modular installation, single cabinet covering an area of just 1.21m2.
  • Applicable to multiple industrial scenarios and easy to connect to the grid;
  • Anti-installation short-circuit error, convenient and safe for maintenance;
  • Easily plug and play with aviation plug and simple capacity expansion covering power range from 50kW to 800kW .
  • Factory prefabrication and integrated transportation to reduce the transportation, installation and commissioning fees by 15%.



Smart:

  • Remote cloud operation and maintenance, supporting remote and local monitoring;
  • Smart balancing strategy and system Al prewarning to ensure the consistency of battery life cycle;
  • Support black start function with reliable power supplv in off-grid/micro-grid mode;
  • Support multiple operation modes (VPP, grid-connected, off-grid) to improve revenue.



Application:

  • Commercial Premises
  • Industrial Park
  • Mine
  • Pastoral
  • Petrol Station
  • Island
  • Data Centre
