Description
Overview:

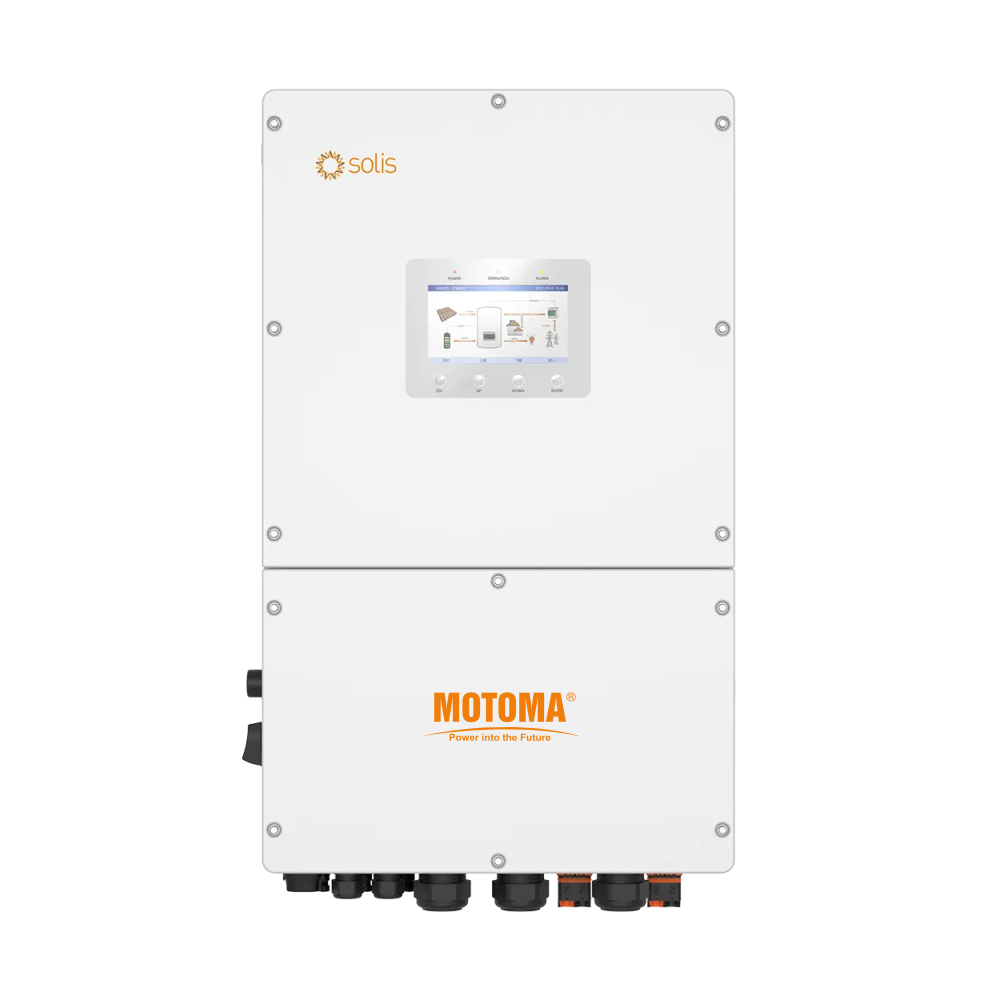

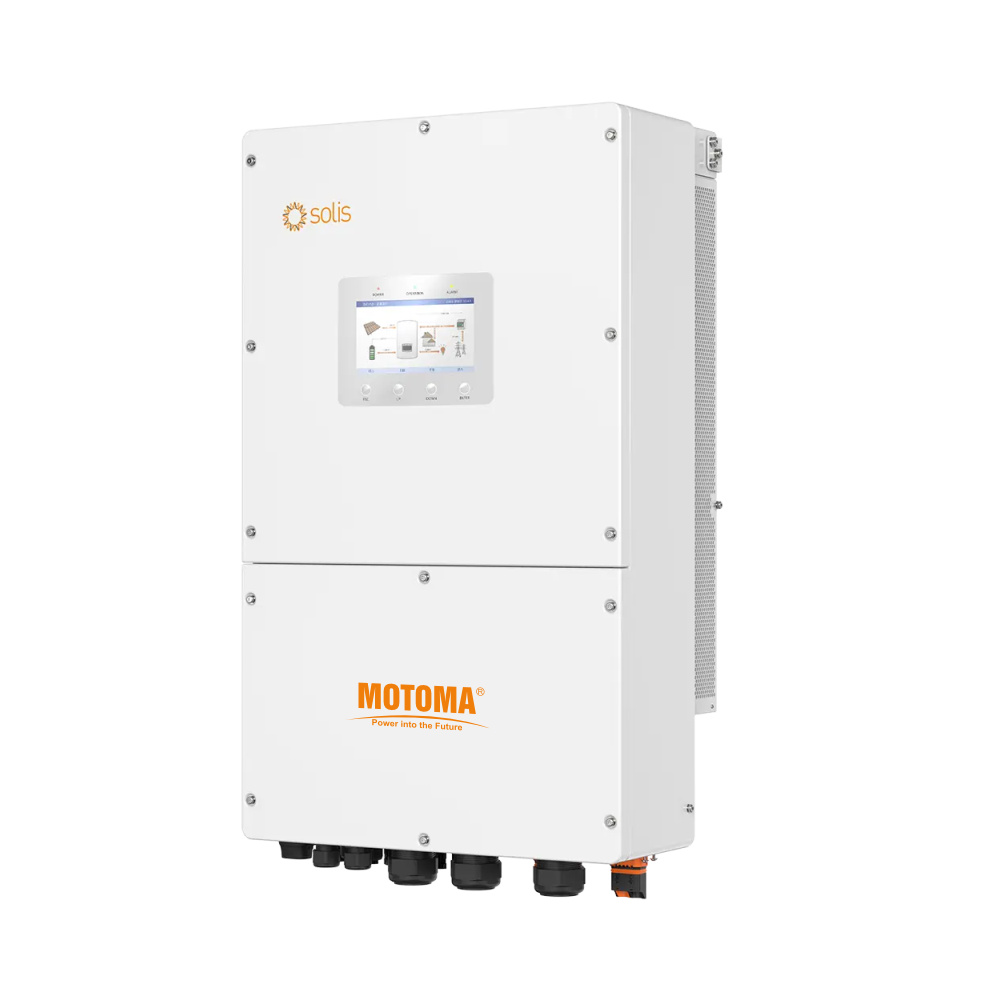

The MOTOMA Solis S6-EH3P (30–50KW) series is a high-capacity, high-voltage hybrid inverter built for demanding three-phase residential and commercial energy storage applications. With up to 99.9% MPPT efficiency, support for dual battery inputs (up to 140A total), and integrated smart functions like generator control, peak shaving, and smart load support, it provides powerful, flexible, and reliable energy management.
Main Features:
- Dual Battery Input: Supports 2 battery ports with up to 70A each, 140A total
- High Charge/Discharge Power: Up to 55KW total battery power output
- 4 MPPTs with 20A per string: Supports PV modules 182mm and 210mm
- 1.6× Surge on Backup Port: Ensures smooth operation of heavy loads like pumps and ACs
- 100% Phase Imbalance Support: Ideal for complex load scenarios
- Up to 6 Inverters in Parallel: Scalable for larger projects
- Smart Operating Modes: Self-use, Selling First, Off-grid
- Smart Load + AC Coupling + Peak Shaving: Optimized energy management
- <10ms Backup Switching: UPS-level performance for critical loads
- 7” LCD + Bluetooth: Local monitoring without internet
- Remote Monitoring: Wi-Fi, 4G, LAN, Ethernet via SolisCloud
- Full Protection Suite: AFCI, surge, insulation, reverse polarity, short circuit, etc.
- Outdoor Ready: IP66 rated, -25℃ to +60℃ operating range
