Description
Overview:

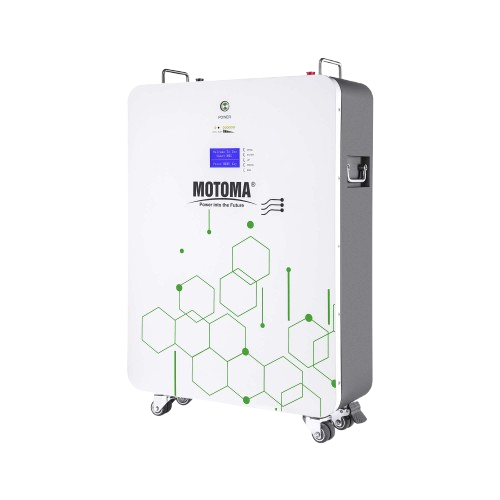

MOTOMA M series LiFePO4 battery designed with 15 years or more service life for general purpose, which designed with advanced technology, built in intelligent BMS for more safe, with SOC design and communication protocol to match up with different brand inverters. Also motoma can supply customized upper computer software for BMS communication via RS232 to set parameters or read monitoring data
Battery Parameters:
| Battery model number | M88PW |
| Nominal voltage | 51.2V |
| Nominal capacity | 200Ah |
| Power capacity | 10.24KWH |
| Cycle Life | ≥ 6000 cycles @80% DOD |
| Operating volt. Range | 43.2V~58.4V |
| Max. charging current | 150A |
| Max. discharging current | 150A |
| End voltage of charge | 58.4V |
| Dimension (L x W x H) | 510*680*195mm |
| Unit weight | 97.5Kg |
| Communication | CAN/RS232/RS485 |
| Module parallel | Support up to 15 packs |
| BMS protection | Support |
| Charging temperature range | 0~45oC |
| Discharging temperature range | -20~60oC |
| Certification | ISO / UL / IEC /CE / UN38.3 /MSDS |
Main Features:
- With SOC design.
- Support remote monitoring.
- Support monitoring by the inverter app.
- Support high power discharge.
- Smaller, lighter, and longer life.
Battery Advantages:
- Top A grade cells, passed UL1973 test
- Long cycle life
- High efficiency output power: >96%
- Low self-discharge batteries.
- With intelligent BMS protection, more safe.
- Small size, light weight (30% of size / weight of lead acid batteries)
- Eco-friendly batteries.
Application:
- Power Generation System ( Solar or Wind Power )
- Household Energy Storage System
- Auto Control System & ATM Machine
- Electronic Apparatus and Equipment
- Emergency Light & Emergency Backup
- Power Supply & Alarm / Security System
- Communication Power & DC Power
- Electric Power System (EPS)
- Uninterruptable Power System (UPS)
