Description
Overview:

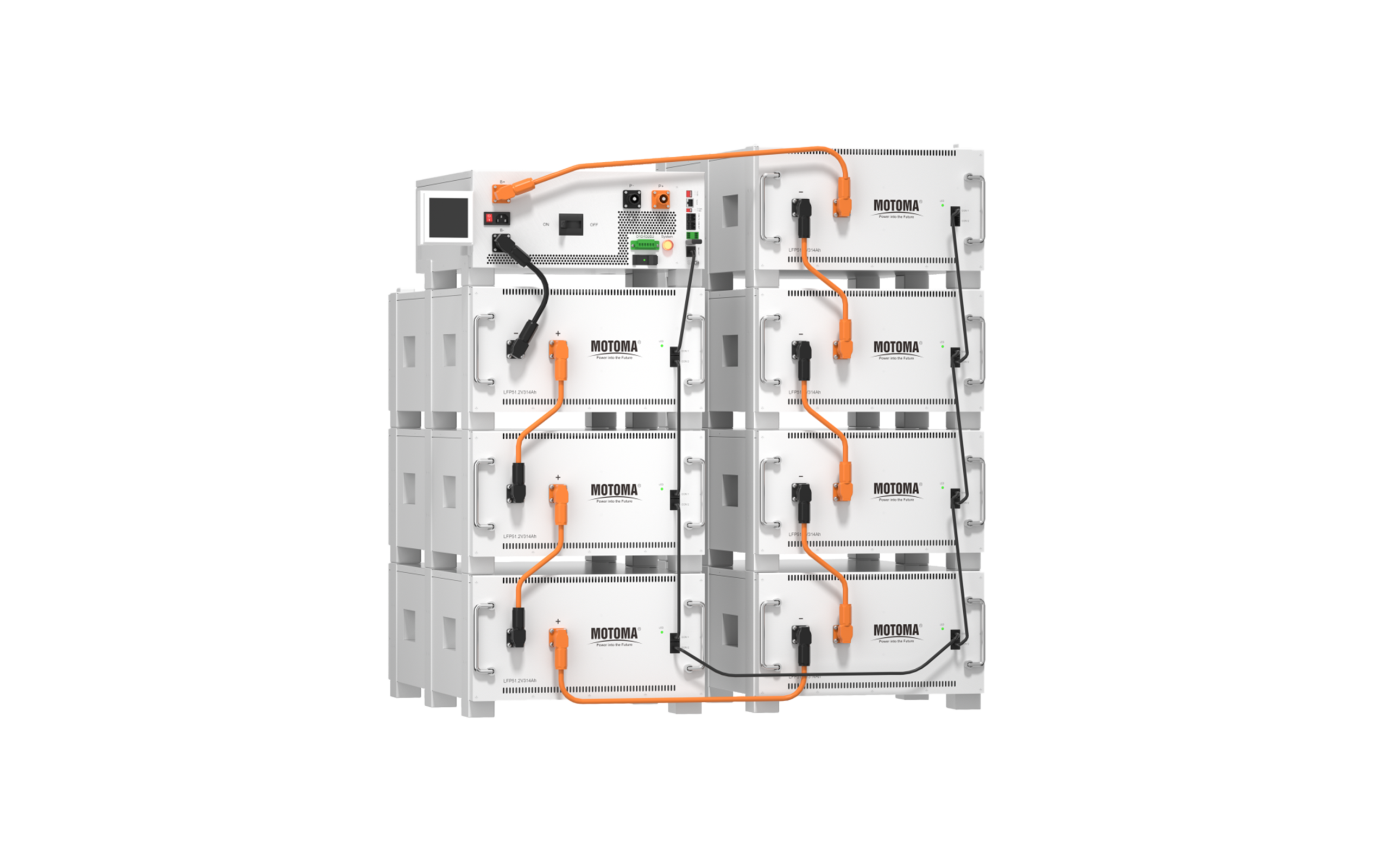

Introducing the MOTOMA High Voltage Battery 358.4V, the epitome of safety and reliability in the world of energy storage. This cutting-edge lithium iron phosphate battery system is specifically designed to cater to the demanding needs of UPS, home storage, and industrial as well as commercial energy storage fields. Offering high performance, exceptional stability, and unparalleled efficiency, the MOTOMA High Voltage Battery ensures seamless operation across a wide range of applications. Whether you’re looking to secure uninterrupted power supply, optimize home energy consumption, or enhance industrial energy capabilities, this 358.4V system delivers the solution you need with unmatched versatility and reliability.
Battery Parameters:
| Battery model number | HV-M113 |
| Nominal voltage | 358.4V |
| Nominal capacity | 314A |
| Power capacity | 112.5 KWh |
| Cycle Life | 8000 cycles |
| Operating volt. Range | 43.2 ~ 57.6V |
| Max. charging current | 150A |
| Max. discharging current | 150A |
| Dimension (L x W x H) | 1086×815×1068mm |
| Unit weight | 850Kg |
| Communication | RS485/CAN |
| Module parallel | Support up to 8 packs |
| BMS protection | Support |
| Charging temperature range | 0~45oC |
| Discharging temperature range | -20~60oC |
| Certification | ISO /UN38.3 /MSDS |
Main Features:
Smart Control & Data Visualization: Data is visualized and intelligently controlled via Wi-Fi, with an easy-to-use interface that combines intelligence and high performance.
Safe, Reliable, and Long Life: Built with safety at its forefront, our battery system offers unmatched reliability and longevity, ensuring peace of mind for all users.
Standardized Module Design: The system’s modular design promotes ease of installation and scalability, allowing for straightforward integration into various energy storage applications. Up to 8 battery cabinets can be managed in parallel.
Discharge and Charge Control: Enhanced control mechanisms allow for efficient management of both charging and discharging processes, optimizing performance and extending battery life.
No-Gap Power Supply: Engineered to provide a continuous power supply, ensuring that your energy needs are met without interruption.
Communication Ports (CAN/RS485/LAN): Offers versatile connectivity options, facilitating seamless communication with energy management systems for real-time monitoring and control.
LCD Display: A user-friendly LCD display provides essential information at a glance, allowing for easy monitoring of the battery’s status and performance.
Flexible Capacity: The system’s design supports capacity expansion, enabling customization to meet specific energy requirements and providing a tailored solution for every user.
Efficient Operation and Maintenance: Designed with efficiency in mind, the battery system ensures straightforward operation and minimal maintenance, reducing downtime and operational costs.
