Description
Overview:

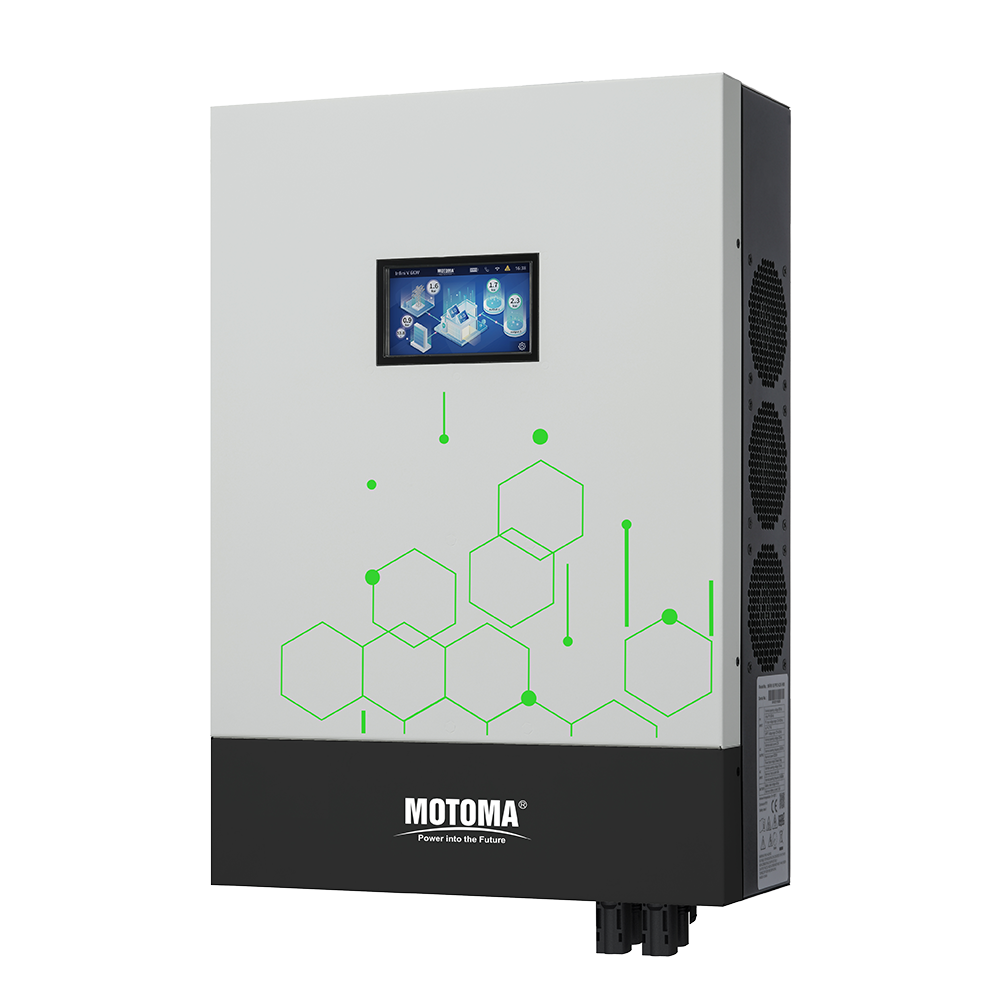

InfiniSolar V5 PRO TWIN is a single-phase hybrid inverter designed to support grid-tie, off-grid, and grid-tie with backup operation modes. It features dual PV inputs with built-in MPPT trackers, allowing efficient solar energy harvesting and flexible system design. With programmable supply priority for PV, battery, or grid, the inverter helps users manage energy consumption, improve self-consumption, and maintain reliable backup power when needed.
The inverter also includes a 4.3-inch colored touch screen with user-friendly HMI operation, built-in Wi-Fi for mobile monitoring, adjustable charging current and voltage, reserved BMS communication, and parallel operation support up to 9 units, making it suitable for residential and light commercial solar energy systems.
Main Features:
- Dual Built-in MPPT Trackers: Equipped with 2 MPPT trackers to optimize PV energy harvesting.
- High PV Input Power: Supports increased PV power up to 6000W / 9000W / 12000W based on model.
- Multiple Operation Modes: Supports Grid-tie, Off-grid, and Grid-tie with backup operation.
- Programmable Supply Priority: Allows users to set priority for PV, Battery, or Grid power.
- Dual Output for Smart Load Management: Helps manage essential and non-essential loads more efficiently.
- User-adjustable Charging: Charging current and voltage can be customized based on system requirements.
- Built-in Wi-Fi Monitoring: Includes Wi-Fi with a mobile app for remote system monitoring.
- BMS Communication Ready: Reserved communication port for Battery Management System integration.
- Parallel Operation: Supports connecting up to 9 units in parallel for system expansion.
- Touch Screen Display: 4.3-inch colored touch screen with user-friendly HMI operation.
- Battery Compatibility: Supports 48V battery systems with adjustable charging settings.
- Multiple Communication Ports: Includes USB, RS232, RS485, Wi-Fi, and dry-contact communication options.
